IPL +808nm Diode Laser + ND:YAG Laser Machine PL-ML01
Intense Pulsed Light +808nm Diode Laser + ND:YAG Laser Machine PL-ML01 combined Diode Laser technology, IPL technology and ND:Yag laser technology. IPL laser machine PL-ML01 forms a new machine with strong comprehensive treatment ability.
Benefits:
- New LCD, automatic counting by microcomputer.
- The new cooling system, air cooling + water cooling + built-in closed cycle air cooling, makes the single working time longer.
- One machine three function ,solve all skin problems.
- Three connectors.
- I-VI skin tones and tanned skin.
Technology
808nm Diode Laser Technology
808nm Diode Laser technology is the golden standard for hair reduction. It can reach the frequency of 20Hz. It can treat all kinds of skin without pain.
IPL Technology
IPL(E-Light/SHR optional) technoloy is multifunctional is effective for hair removal, skin rejuvenation, Wrinkle removal, pigment removal, acne removal ,vascular treatment.
ND:YAG Laser Technology
ND:YAG Laser tattoo removal technology adopts the Q-switch mode, which makes use of the instantaneous emitted laser to break the pigment in ill structure. That’s the laser instantaneous emit theory: Centralized high energy emit suddenly, which makes laser of settled wave band instantaneously penetrate through cuticle to the ill structure in 6ns, and break the relevent pigments quickly
Features
808nm Diode Laser System
Virtually painles
When treating the unwanted hair works by Continuous moving handpiece, gradually heating the dermis to a temperature that effectively damages the hair follicles and prevents re-growth, while avoiding injury to the surrounding tissue. With uniform energy distribution, deep heating and In-Motion technique, PL-ML01 is uniquely effective for long-term hair removal.
Applying to all kinds of skin types
Its average power is high, but its energy density is low and its frequency is high, so it can be safely treated by depilation of various types of skin.
- Germany imported laser bars—400W-2000W for option.
- SHR IN MOTION technique, Fast, safe and pain free.
- Big spot size: 12*10mm2, 12*20mm2 for choice.
- Short treatment time- A back or legs can now be treated in 15 to 20 minutes.
IPL System
- 5 filters attached such as 480nm, 530nm, 590nm, 640nm and 690nm.
- 4 spot sizes for optional as 15*50mm², 13*30mm², 8*40mm² and 13*40mm²
- SHR IPL system for option, 10 shots per 1s promised.
ND YAG:Laser System
- 1064nm, 532nm, Skin rejuvenation probe.
- Frequency up to 10Hz.
- Infrared ray indicator can help to enhance the point utilization thus to implement more accurate treatment, it is really cost saving.
- Ruby movement, the movement does not need to be replaced, life-long maintenance free.
- The light pulse energy is big, thoroughly dispels each kind of pigment.
Germany imported ultra-quiet water pump:
1. No noise, provide a quiet and comfortable environment for patients.
2. Large water flow, provides better cooling, and prolong machine life.
Powerful cooling system:
1. Imported 316L stainless steel, better cooling, longer lifespan.
2. Semiconductor thermal management system for optional for longer working time continuously.

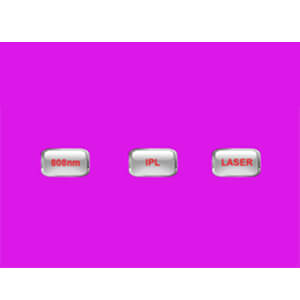

Intuitive High Sensitive Touchscreen

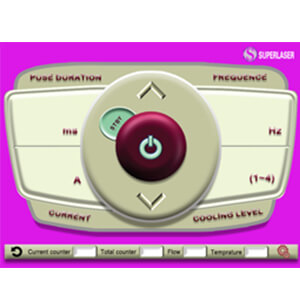

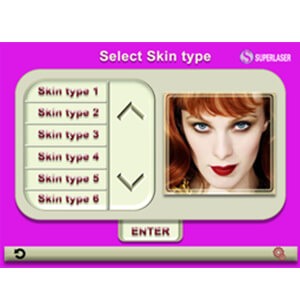

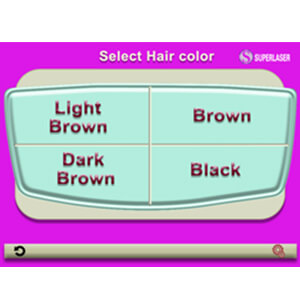

808nm diode laser parameters setting interface:

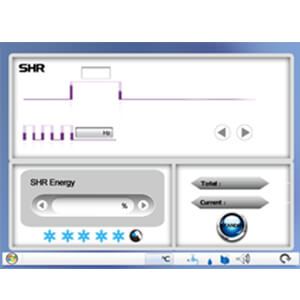

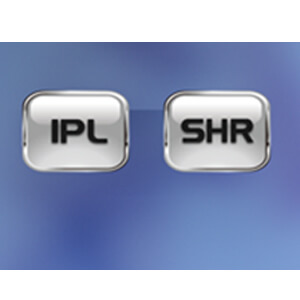

IPL System parameters setting interface:
ND:YAG Laser sytem parameters setting interface
Technical Parameters
| 808nm/IPL/ND:YAG laser | |
|---|---|
| 808nm diode laser | |
| Power | 300W /500W / 600W |
| Spot Size | 12x10mm² /12x20mm²optional |
| Energy | 1-160J/cm² adjustable |
| Repetition Rate | 1-10Hz |
| Pulse Width | 10-350ms |
| Energy Density | 128J/cm² |
| Cooling | 1–4℃ |
| IPL | |
| Handlepiece | Elight/IPL/SHR optional |
| Spot Size | 15*50mm² /13*30mm² / 8*40mm/13*40mm² optional |
| Elight/IPL filter | 480nm—1200nm |
| Elight/IPL Energy Density | 1~50J/cm² |
| SHR Frequency | 1-10HZ |
| ND:YAG laser | |
| Wavelength | 1064nm & 532nm |
| Energy | 1000mj |
| Width | 10ns |
| Pulse repetition rate | 1-10Hz |
| Power Supply Requirement | 110 (220/230 optional) VAC, 50~60Hz |
Working Principle
808nm Diode laser hair removal freeze through technological innovation, so that the treatment of hand piece to negative temperature, unlike other laser burns the skin, to better protect the skin, hair follicle melanin by specific wavelength of laser absorption, and the heat exchange to destroy hair follicle, the laser energy can be shot down into the hair follicles within the hair follicle is destroyed energy decomposition, so that the hair follicles to stop growing, because the laser energy about 15% of the skin can penetrate the dermis layer, the epidermis and more with melanoma of the hair follicle deep through the heat damage to hair follicle degeneration and atrophy; achieve permanent hair removal results.
IPL System: five kinds of wavelength (430nm—1200nm) and powerful pulseis belonged to IPL. Decomposition and Quantization of wavelenghs ,powerful pulseis and wide spectrum of colours before colours form photon .Decomposited and quantizated photon irradiation/ shine our skin and it could arrive different layers of our skin .at that monment ,the photon could specific to different spots,angiotelectasa and hair to eliminate. IPL could break out abnormal pigment cell, shut abnormal tiny blood vessel,stimulate collagen to hyperplasia/grow,make elastic fibers to rearrange .Then our skin will get more glossy ,and younger .
Q switch nd yag laser: ND:YAG Laser tattoo removal equipment adopts the Q switch mode, which makes use of the instantaneous emitted laser to break the pigment in ill structure. That’s the laser instantaneous emit theory: Centralized high energy emit suddenly, which makes laser of settled wave band instantaneously penetrate through cuticle to the ill structure in 6ns, and break the relevent pigments quickly.
Application
808nm Diode Laser:
- Permanent hair removal.
- Hair reduction.
- Armpit hair removal.
- Limbs hair reduction.
- back, chest epilation.
- bikini line depilation.
- facial hair removal.
- upper lip hair removal.
- chin hair removal.
- Legs hair reduction.
Elight/IPL/SHR:
- Hair removal.
- Skin rejuvenation.
- Skin tightening & lifting.
- Wrinkle removal.
- Pigment removal.
- Acne removal.
- Vascular treatment.
ND:YAG Laser:
- Tattoo removal.
- Skin rejuvenation.
- Pigment treatment.
- Specially remove red, blue, coffee, brown and all kinds of color tattoos.
IPL Laser Machine Treatment Before & After
