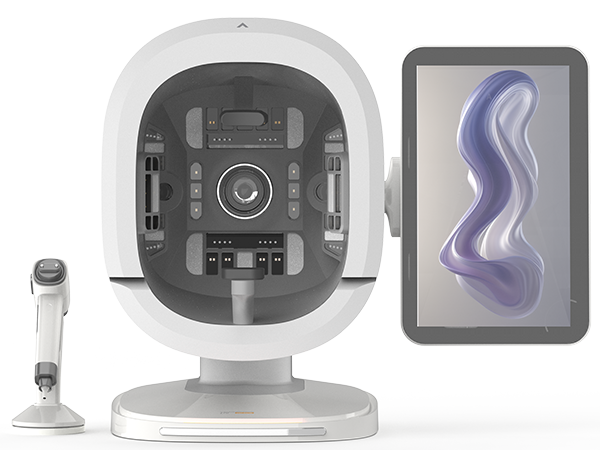

AI Intelligent Skin Imaging & Detection System
AI skin detection system helps identify and address various skin concerns. This advanced detection system integrates eight spectral imaging technologies and captures three fixed facial angles: front, left, and right. It provides comprehensive 180° facial coverage with no blind spots. Developed for professional, objective skin assessment and easy operation, it analyzes 17 key facial skin indicators with high precision. With just one click, the device captures images and generates a detailed report, making skin detection faster, easier, and more efficient.
AI-Powered 30+ Detection Dimensions + Customized Skin Color Algorithms: Go beyond basic analysis with 30+ professional indicators: moisture, pores, wrinkles, acne, pigmentation, sensitivity, skin age, pH, and collagen. Industry‑first skin‑color optimization adapts algorithms for yellow, white, black, and brown skin tones, ensuring accurate results for every client.
Instant Report Generation & 16-Type Baumann Classification: Generate a comprehensive, customizable report in seconds with one‑click operation. Includes the internationally recognized 16‑type Baumann skin classification, pH value, skin properties (dry/oily/combination/normal/sensitive), and color‑coded grading (A–E). Clients can access their reports anytime via QR code on mobile.
The handheld micro‑imager with white, polarized, and UV light lets you inspect skin and scalp details at both surface and deep levels. Use the 3D slicing function to visualize epidermis and dermis layers, and the muscle‑bottom perspective to compare pigmentation, redness, and inflammation between superficial and basal layers.
Professional Data Management & User‑Friendly Operation: Designed for clinics, spas, and retailers: one‑click capture, image export, backend data management, and parameter adjustment for fine‑tuning results. Supported by patents and certifications (CE, ROHS). Ideal for consultation, treatment planning, and tracking progress – all in a sleek, ergonomic device.
Benefits:
- 8 Spectral Imaging Modes
- 180° 3-Camera Capture – Front, left, and right views captured in one session for a complete skin evaluation.
- 30+ Skin Indicators – Turn skin concerns into objective consultation data.
- Custom Algorithms for All Skin Tones – Customized algorithms help improve evaluation accuracy across yellow, white, brown, and black skin tones.
- Instant Reports for Better Consultations – Capture, analyze, and generate a clear client report in seconds.
- 50X Handheld Microscope – Inspect skin and scalp details closely.
The AI Intelligent Skin Detection System is designed to provide a professional, efficient, and comprehensive facial skin assessment experience. Equipped with 8 spectral imaging technologies, 3D imaging, microscopic examination, and 20 testing indicators, it helps beauty professionals detect skin conditions with greater accuracy and clarity. The system supports cloud data storage, file management, adjustable skin test results, backend system management, and multiple comparative analysis and reporting modes. With its intelligent workflow and easy operation, it enables users to complete skin testing, analysis, and report generation more quickly, making consultations more professional and customer-friendly.

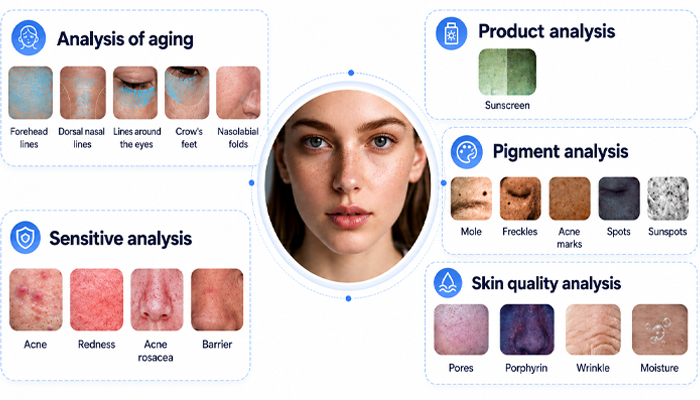

Analysis of 5 Major Symptoms
- Product analysis
- Pigment analysis
- Skin quality analysis
- Analysis of aging
- Sensitive analysis

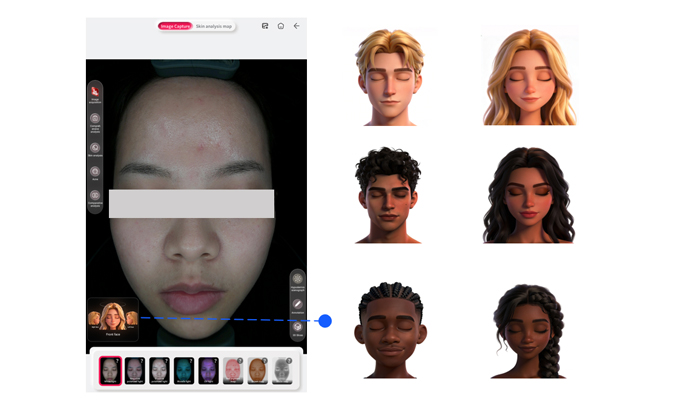

Industry Pioneer – Customized Skin Color Testing
- The multidimensional perspective model displays changes based on skin color selection.
- The industry’s first skin color detection mode optimizes detection algorithms and evaluation dimensions based on the skin characteristics of different races and skin tones.

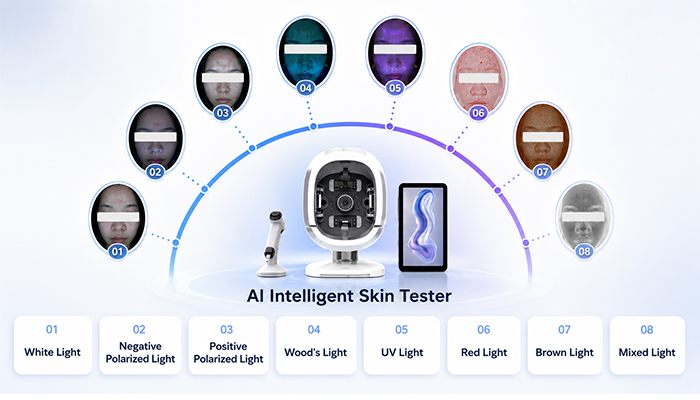

Eight Spectral Images
- White light
- Negative-polarized light
- Positive-polarized light
- Wood’s light
- UV light
- Red light
- Brown light
- Mixed light
White Light Theory
Visible spots and other blemishes on the skin surface (acne, spots, wrinkles, pores, etc.) under natural light sources, which are mainly used as the basis for other spectral image comparisons.
Negative Polarized Light Theory
Using negative polarized light technology to filter out the refracted light on the skin surface, so that you can clearly examine the light brown, tan, dark brown, light yellow, or dark red skin lesions; It can distinguish the condition of capillaries, facial acne, uniform skin and other skin problems.
Positive Polarized Light Theory
Positive polarized light can improve the clarity of superficial texture, magnify local details, so as to clearly observe the smoothness of skin, fine lines and wrinkles and bumps (wrinkles, pores, Acne scars, Acne, etc).
[/lgc_column]
Wood’s Light Theory
Wood’s light can detect deep pigments in dermis. The principle behind this is that melanin does not fluoresce after exposure to ultraviolet radiation, allowing melanin to stand out more clearly with stronger contrast.
UV Light Theory
Under a UV light source, the content and distribution of the purple pigment bilirubin are displayed clearly through fluorescence, which can be used for the auxiliary diagnosis and efficacy observation of pigmentary dermatoses, pore issues, skin infections, and porphyria.
Red Light Theory
Using the RBX light source technology, it is applied for analyzing the subcutaneous hemoglobin on the face as well as inflammatory pigmentation (such as sensitive skin, lesions, acne, red blood vessels, etc, which are skin inflammatory conditions)

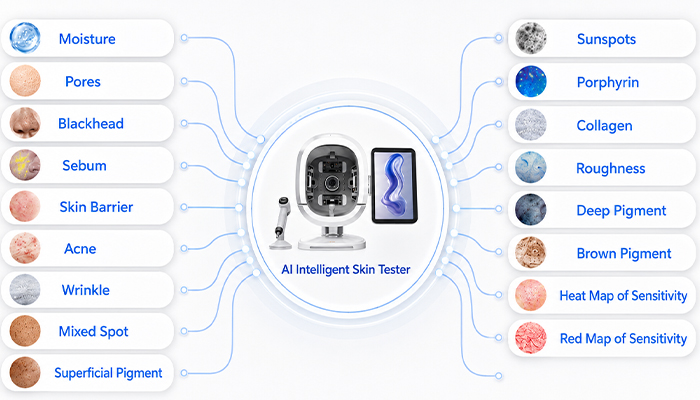

Seventeen Testing Indicators
- Moisture
- Pores
- Blackhead
- Sebum
- Skin barrier
- Acne
- Wrinkle
- Mixed spot
- Superficial pigment
- Sunspots
- Porphyrin
- Collagen
- Roughness
- Deep pigment
- Brown pigment
- Heat map of sensitivity
- Red map of sensitivity

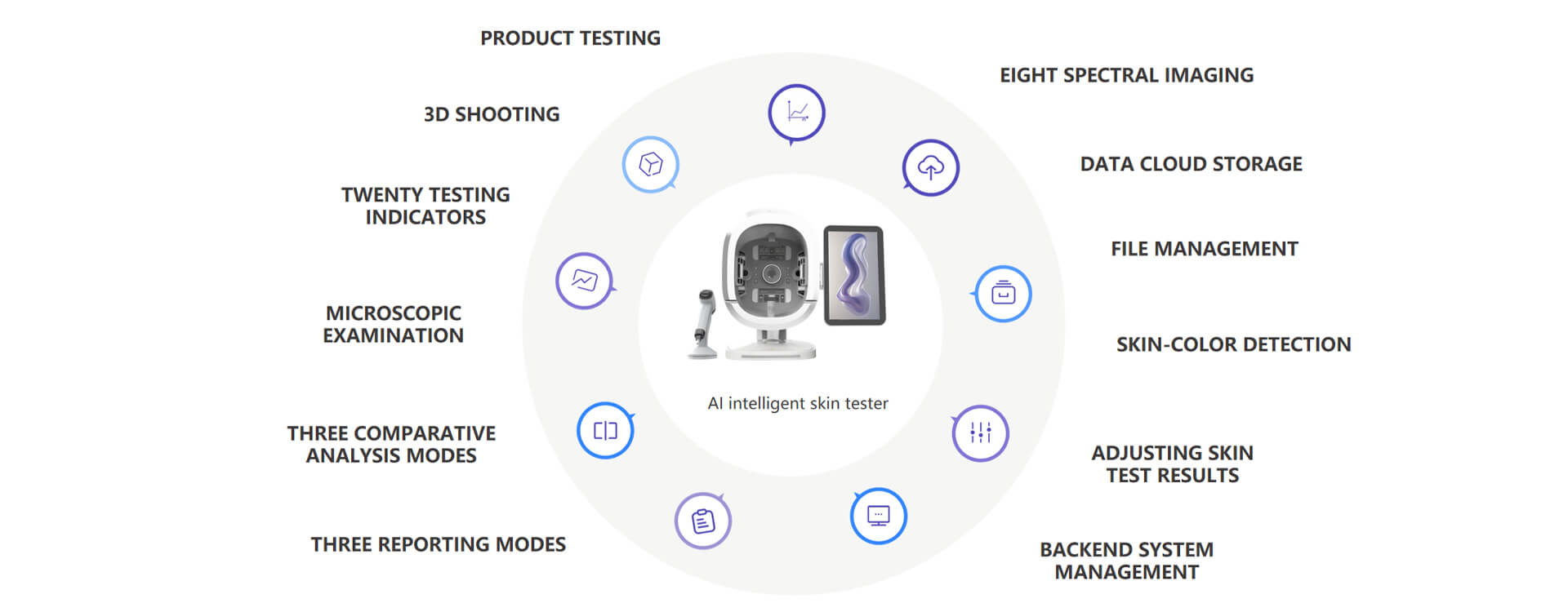

Functions

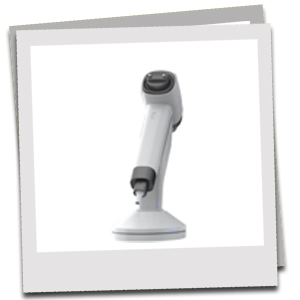

Handheld skin microimager

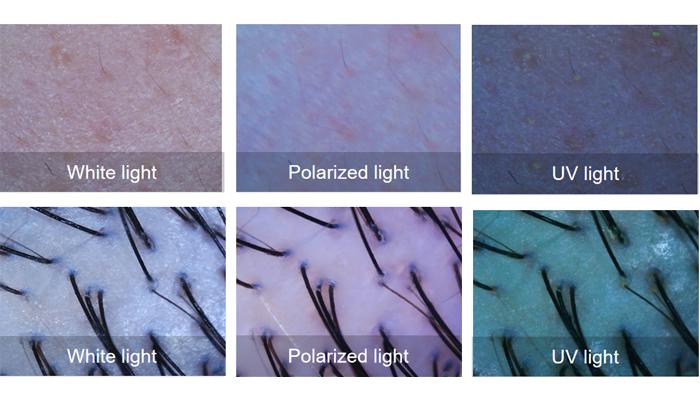

Microscopic imaging of skin details presentation
Technical Parameters
| Image element | Industrial grade 36 million |
| Light spectrum | White light, positive polarization, negative polarization, Wu, UV, erythroid, brown, white |
| Shading mode | Pull-down hood |
| Product material | Industrial-grade ABS |
| Electric source | AC100-260V, 50/60Hz |
| Product size | 659 × 377 × 559mm (after folding: 460 × 446 × 559mm) |
| Central processing unit | The RK3568 quad-core Cortex-A55 has a maximum frequency of 2.0GHz |
| Main plate | R10-S6810 motherboard with Android11 system |
| Internal memory | Dual channel LP DDR4, 4G |
| Hard disk | MMC5.1, 32G |
| Mode of operation | Multipoint capacitive touch |
| Screen feature | It folds 90 degrees |
| WIFI | Built-in dual-band WIFI (2.4G, 5G) |
| HDMI | 1 Pcs |
| USB | 3 Pcs |
| Screen scale | 16:9 |
| Screen size | 15.6 inches |
| Screen pixel | 1920 × 1080 |
| Net weight of instrument | 11.9 KG |
| Packing weight | 17 KG |
| Box size | 635 × 560 × 510 mm |
| Packaging material | Corrugated paper + pearl cotton |
| Other accessories | Handheld skin analyzer, power cord |
The price of the AI Intelligent Skin Imaging & Detection System depends on the selected configuration, software functions, accessories, and order quantity. Standard packages usually include the main skin imaging device, handheld skin analyzer, power cord, English software system, and professional skin analysis report functions. Optional services such as logo customization, cloud data storage, advanced software features, and OEM/ODM packaging may affect the final price. Please contact us with your required configuration and destination country, and we will provide the most competitive quotation with shipping cost, warranty details, and delivery time.
For more detailed information, please fill out the form below and we will get back to you ASAP. Or simply call Phone: +0086 15001300057. Or WhatsApp You will get the latest AI Intelligent Skin Imaging & Detection System price for your reference.
