Q-Switched laser system is a technique for obtaining energetic short (but not ultrashort) pulses from a laser by modulating the intracavity losses and thus the Q factor of the laser resonator. The best laser for tattoo removal technique is mainly applied for the generation of nanosecond pulses of high energy and peak power with solid-state bulk lasers.

As one of the laser tattoo removal machine manufacturers, PrettyLasers, provide the tattoo removal machines with a cost-effective solution that yields higer returns than devices that achieve comparable resutls using more expensive technology.

Technology

When we talk about Q-Switched (QSW) lasers, there are a few key component elements to discuss as follows:

Professional Laser
Professional Laser

Laser

The word ‘laser’ is an acronym for ‘Light Amplification by Stimulated Emission of Radiation.’ Lasers are monochromatic, which means that photons emitted will be moving at a wavelength (i.e., color) determined by the gain medium. They are also collimated, meaning that in a vacuum, the light beam won’t spread out.

Lasers fall into various classifications, dependent on the power emitted. These classifications vary from Class I (one, or 1), to Class IV (four, or 4). Most lasers used in aesthetics and all lasers for tattoo removal are Class IV laser devices. This means they are the most powerful class of laser, and goggles or patient eye shields are required to be worn for safe use of the machine.

Gain Medium

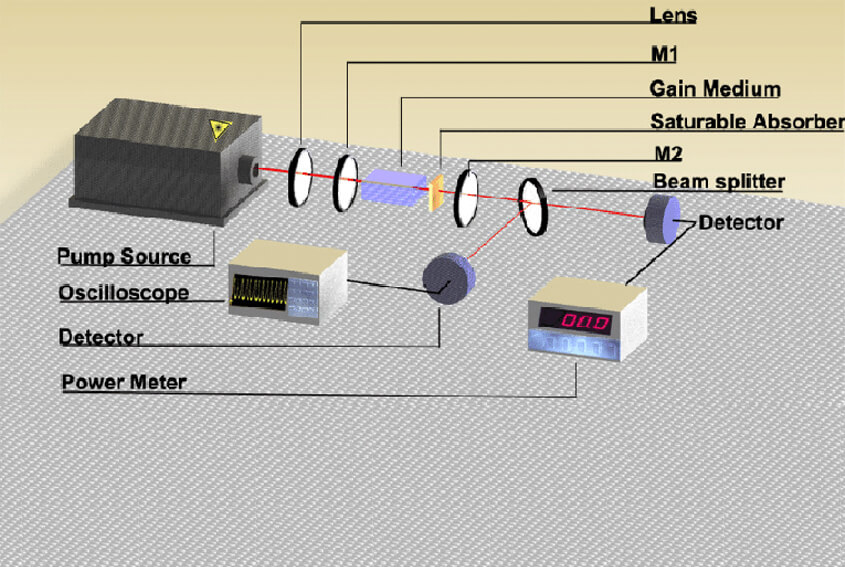

The gain medium is the aspect of a laser device that will determine the wavelength of laser light emitted. Gain mediums may be solid, liquid, or gas. Lasers used in tattoo removal are solid state gain mediums. The most common wavelength used for tattoo removal is 1064 nm which is produced by the Nd:YAG crystal (Neodymium-doped Yttrium Aluminum Garnet). Other common gain mediums for tattoo removal are Alexandrite (755 nm) and Ruby (694 nm). In order to create 532 nm laser energy, 1064 nm laser emission is passed through a KTP crystal (Potassium Titanyl Phosphate), which serves as a second harmonic generator, cutting the wavelength in half.

gain medium
gain medium

Important to note, though, is that gain medium alone won’t determine the function of a laser system. The final component – the Q-switching mechanism – is what determines the function. For instance, attempting to use a Q-switched system to permanently reduce or remove hair will prove ineffective, while using a hair removal machine to treat tattoos are dangerous.

Q-Switching Mechanism

extraordinarily Short Pulse

Q-Switched lasers produce extraordinarily short bursts of energy. A Q-switched system is capable of producing massive amounts of power instantaneously. This peak power is what plays a role in breaking up the most stubborn inks.

Treat Tattoo Removal, Pigmentation

Q-Switched lasers are used for much more than just tattoo removal as well. They can be used to treat pigmentation and vascular lesions, non-ablative skin resurfacing procedures, as well as toenail fungus. With all of these applications, wavelength selection is critical in treating the malady as efficiently and appropriately as possible.

Q Switched Laser Tattoo Removal Systems




Actively Q-switched (AQSW) and Passively Q-Switched (PQSW)

Actively Q-switched (AQSW) and Passively Q-Switched (PQSW) laser devices are used across the world for their application of tattoo removal, among many other aesthetic procedures.  The difference between the two are as follows:

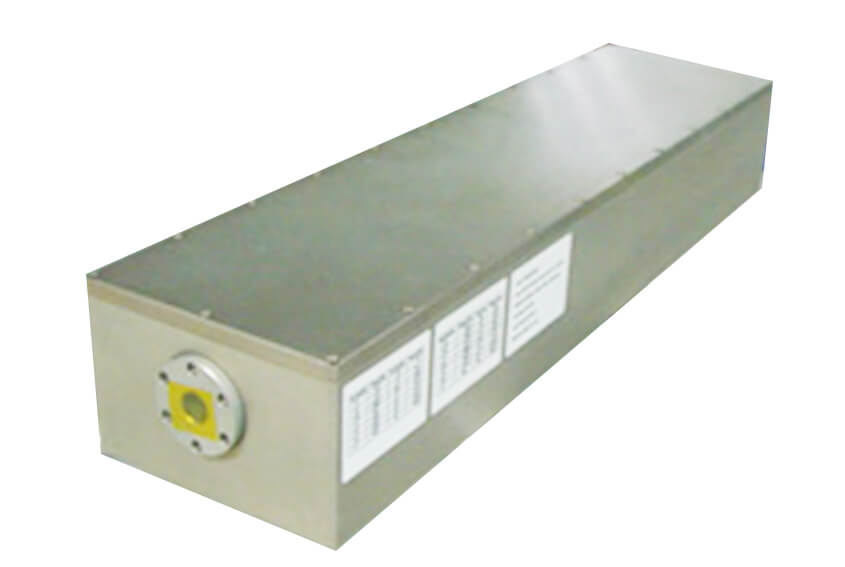

AQSW
AQSW

A Greater Pulse Energy And Peak Power

Actively Q-switched lasers have a more complex pulse production method that allows for greater pulse energy and peak power.

Powerful

Passively Q-switched lasers are generally less powerful, but more affordable.

Technologically speaking, AQSW devices utilize a Pockels Cell to release energy in one single, very powerful pulse, while PQSW devices use a Saturable Absorber which functions similarly but releases energy in a train of pulses. This means that an AQSW device is capable of higher peak power and thus, is more effective at late-stage treatments than a passively Q-switched device.

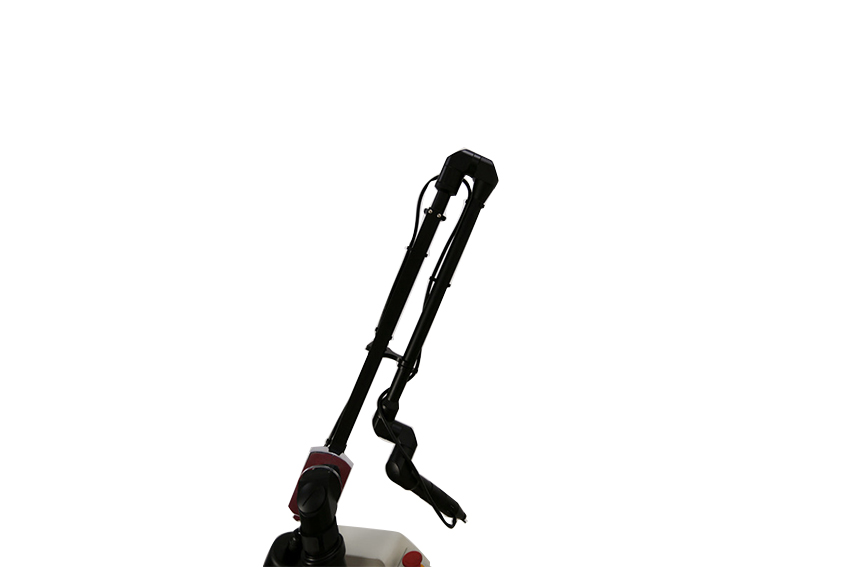

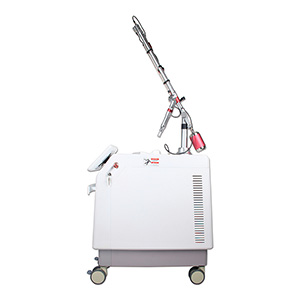

These lasers are relatively simple to distinguish. AQSW devices are usually large and more than likely have an articulating arm stemming from the top of the system. Professional AQSW systems are usually comprised of 7 optics, as well as some type of handpiece, allowing for a complete range of motion to treat any location on the body. AQSW systems are not portable as they are sensitive to shock and vibration.

"<yoastmark

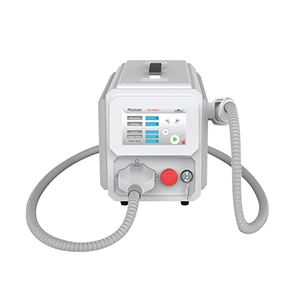

PQSW devices are generally smaller, as well as potentially portable. They come in the form of tabletop units or on-a-cart systems, but always have a gun-shaped treatment head attached with an umbilical cord, as opposed to an articulating arm. This cord contains voltage leads for the flashlamp as well as cooling fluid hoses (deionized water, in most cases). PQSW systems are less vulnerable to shock and vibration, but because the energy is released as a train of pulses, they are not as efficient as tattoo removal devices AQSW systems are.


Picosecond Machines and AQSW nanosecond Machines

Picosecond machines and AQSW nanosecond machines are much more similar than PQSW devices.

One nanosecond is a billionth of a second, and one picosecond is a trillionth of a second. Picosecond systems may be more accurately referred to as sub-nano, quantitatively speaking. Traditional AQSW devices will have a 6-40 nanosecond pulse duration, while picosecond AQSW devices will vary between 500-800 picoseconds – essentially, making the pulse duration 6-10x faster, with equivalent system energy (i.e. .9-1.0 Joules).

Picosecond machines
Picosecond machines

The current claim is that picosecond machines can remove tattoos in fewer treatments because the pulse duration is shorter than conventional nanosecond Q-switched lasers. Additionally, the reduction in pulse duration is argued to create less thermal damage, thereby preserving more skin tissue and reducing side effects in the process. The clinical studies performed to research this point have not found picosecond machines to provide a significant statistical difference from the existing nanosecond technology. While a higher peak power is possible with a picosecond machine, the point at which this becomes an important aspect in the removal process won’t present itself until potentially after the tattoo may already be removed.

Cosmetic Indications

There are some elements that make Q-Switched Nd:YAG lasers essential for treating skin conditions:

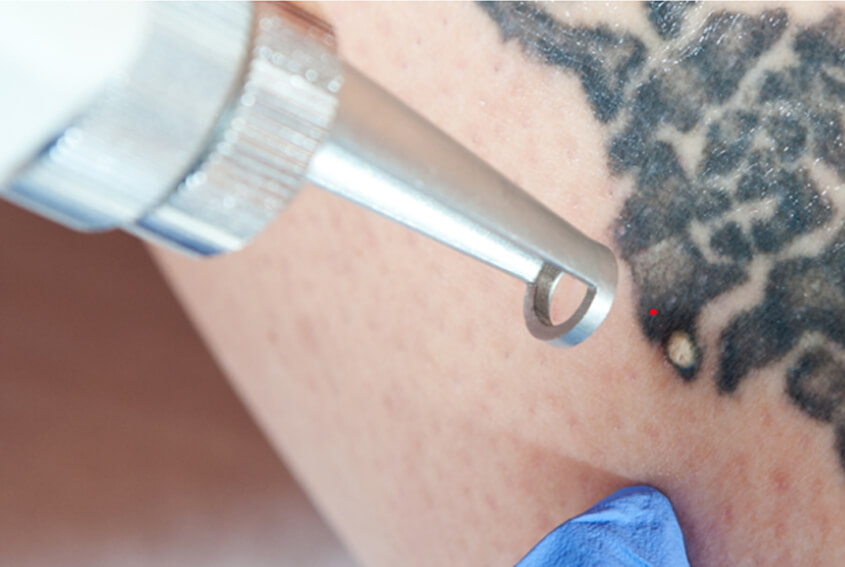

Cosmetic Indications
Cosmetic Indications

1064nm & 532nm

The 1064 nm and 532 nm wavelengths can be useful for targeting certain pigments. These two wavelengths are selectively absorbed by the melanin or tattoo pigment in the skin.

Ultra-short Pulse

The pulse is powerful enough to destroy its target, but ultra-short pulse to not harm the skin. The short pulse produces very high peak power for optimal clinical efficiency with minimal patient pain.

Painless Tattoo Removal

Unwanted dark and multi-colored tattoos can be safely and effectively eliminated with PrettyLasers’s range of tattoo removal treatments. Using a combination of laser wavelengths that target different ink colors, high-intensity light beams break up the ink particles in the tattoo, revealing clear, in-free skin with minimal risk of scarring or hypopigmentation.

Successful multi-color tattoo removal requires a high powered laser that can deliver enough energy within the absorption spectrum of a wide range of colors. The high power Q-Switched ND:YAG 1064nm laser is deal for treating darker ink colors (blue, black and green), while the 532nm wavelength is effective for brighter ink colors (orange, red and yellow). The treatment mechanically breaks down ink particles without casuing thermal damage, casusing the tattoo to fade with minimal risk of scarring or hypopigmentation. So the Q-Switched Laser is the best laser for tattoo removal.

Benign Pigemented Lesions

Hormonal changes and lifecycle can affect the distribution of color (melanin) in our skin, leading to the appearance of age spots, sun spots or melasma-a dark, patchy facial discoloration condition.

PrettyLasers’s laser and light-based treatments remove the appearance of spots and pigmentation by targeting the melanin in the darknened area, clearing all layers of the pigmentation and revealing even-toned, unblemished skin.

The Treatments are specially designed for patient comfort and are safe and effective for skin types, including dark skin.

Using a nanosecond laser pulse – the gold standard for treating pigmented lesions, Q-Switched ND: YAG Laser System is the optimal choice for treating naturally-occuring hyperpigmentation including:

  • Pigment deposit
  • Solar lentigos

Clinical Evidence – Before & After Pictures

Arm Tattoo Removal

Face Tattoo Rremoval Before And After




If you are interesting in learning more about specific system or discussing buying a tattoo removal machine or other aesthetic equipments, fill out the form below and we will get back to you ASAP.

We will answer your email shortly!

Best Laser For Tattoo Removal Solutions By Q-Switched ND:YAG Laser

One of the laser tattoo removal machine manufacturers, PrettyLasers, provide powerful, multifunctional and effective laser tattoo removal solutions for aesthetic treatment practioners:

Q-Switched Nd:yag – A high pulse repetition rate and high power for faster q switch laser tattoo removal treatments while low fluence values ensure minimal side effects while achieving excellent clinical painless tattoo removal outcomes.
