Portable 980nm diode laser spider veins treatment machine PL-M02 is the expert for superficial vascular skin changes. With 30 watt, this diode laser system is one of the most powerful of its class, allowing it to use large spot sizes. This laser vein treatment machine PL-M02 is able to foucs laser beams on a scope of 0.2mm ~3.0mm diameters by adopting 980nm diode laser combined with fiber coupling output technique. The system has intelligent control system and precise aiming beam. Therefore, the accurate laser energy can be safely and effectively acted on treatment areas for the best curative results.

Portable 980nm diode laser spider veins treatment machine PL-M02
Portable 980nm diode laser spider veins treatment machine PL-M02

Buy varicose vein removal machine

The Portable 980nm diode laser system PL-M02 is lightweight with a compact design. The system can thus be used in different treatment rooms, offices or  for varicose veins home treatment. 980nm Diode Laser System offers pulsed wave mode, making 980nm Diode Laser System suitable for small surgical indications. Five different spot sizes from 0.2mm~3.0mm offer the ideal prerequisites for the treatment of vascular skin changes, such as spider veins, face veins,Linear angitelectasis, cherry angiomas and all kinds of telangiectasia.

Benefits:

  • Versatile-Four spot sizes from 0.2mm~3.0mm wide application range.
  • Latest technology– 980nm laser optical fiber coupling output technique.
  • Durable-no consumable parts, the machine can work 24 hours a day.
  • Powerful-30W huge power supply system, only one treatment needed.
  • Safety-small and exquisite handpiece for precise operation.
  • Efficient-quick treatment with outstanding curative results.
  • Convenient-portable and simple to operate.
  • No trauma-non-contact non-invasive no need of special care.

Treatment Principle

The principle for laser’s blood vessels treatment lies in selective photothermolysis theory. The major targeted chromophore in facial vascular treatment is oxyhemoglobin that existing in red blood cell in vessels. Chromophore is the essential substance that absorbs laser energy. Appropriate pulse width and energy will be set in accordance with different thermal relaxation time. Then vessels will be damaged without hurting surrounding tissues.

According to the curve of laser absorption by targeted substance (right picture), oxyhemoglobin shows a much higher absorption interval in 900nm-1000nm. Thus 980nm semi-conductor laser has the ideal treatment effects for facial vascular removal. Meanwhile, Diode laser can stimulate the dermal collagen growth while vascular treatment, increase epidermal thickness and density, so that the small blood vessels are no longer exposed, at the same time, the skin’s elasticity and resistance is also significantly enhanced.

According to the curve of laser absorption by targeted substance
According to the curve of laser absorption by targeted substance


After absorbing laser energy, oxyhemoglobin produces thermal energy and spreads to vascular endothelial cells through conduction mechanism. In consequence, blood vessel wall is damaged and facial vascular will be treated.

Laser Vein Treatments:

  • Vascular removal: face, arms, legs and the whole body
  • Pigment lesions treatment: speckle, age spots,sunburn,pigmentation
  • Benign proliferation: skin excrescence: Milia, hybrid
  • nevus,intradermal nevus, flat wart, fat granule
  • Blood Clots
  • Leg Ulcers
  • Lymph edema
  • Blood Spider clearance
  • Vascular clearance ,Vascular lesions
  • Acne treatment

Vascular Lesions

Vascular Lesions
Vascular Lesions

Spider veins and varicose veins are blood vessels which become enlarged and visible due to weakened valves, which casue blood to pool rather than flow to the heart.

PrettyLaser’s vascular treatments offer effective, non-invasive solutions that close these veins and reduce or eliminate their appearance.

The spider vein treatments are safe and effective and provide reliable, long term results.

Technology

With a laser power out of 30 watts, 980nm diode laser for vascular removal is one of the most powerful laser systems of its class. Its high power allows it to target blood vessels effectively using short, intense pulsed while protecting the surrounding skin. Spot sizes of up to 3mm cover a wide range of blood vessels types.

980nm Diode Laser System offers pulse mode and five different spot sizes for perfect adjustment to patient skin type, treatment area and indication. The spot size can be set directly on the handpiece without the need to change fibers. The 980nm diode laser for vascular removal system is lightweight, compact and portable alllowing it to be used in different treatment rooms or offices and especially for varicose veins home treatment.

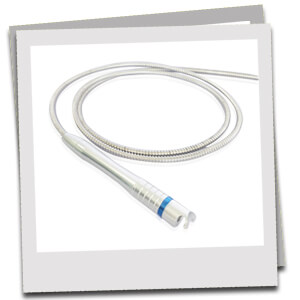

Robust And Durable Fiber
Robust And Durable Fiber

Robust And Durable Fiber

Fiber is not afraid of folding, interface switching without risk.

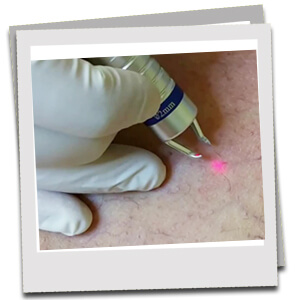

Infrared Aiming
Infrared Aiming

Infrared Aiming

With infrared line of sight, precise control.

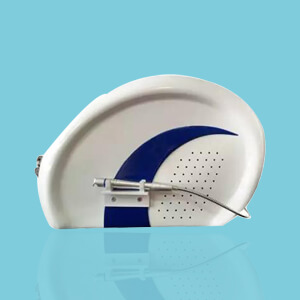

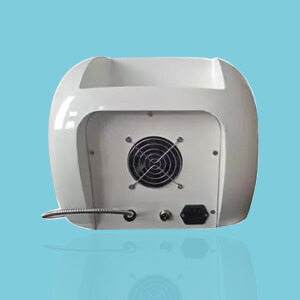

Cooling System

With a high power cooling fan for long-lasting and continuos work

Fan
Fan

Cooling System
Cooling System

Optimal Wavelength

Optimal wavelength 980nm diode laser is the optimum absorption spectrum of Porphyrin vascular cells. Vascular cells absorb the high-energy laser of 980nm wavelength, solidification occurs, and finally dissipated.

Full Visualization and Control Interface:

980nm Diode Laser Main Interface
980nm Diode Laser Main Interface

980nm Diode Laser Parameters Setting Interface
980nm Diode Laser Parameters Setting Interface

Visualization and control software provides flexible, continuous and complete real-time feedback during the laser vein treatment procedure, allowing physicians to control the fiber treatment handpiece for different types of vascular according to patients’s needs.

Technical Specifications

OutputFiber-optic coupling
Laser Wavelength980nm
Output Power1-15W/20W/25W/30W (Options)
Pulse Width15ms-100ms
Pulse Frequency1-5 Hz
ModePulse mode
Operate ModeTouch screen
LanguageChinese, English, Spanish, Russian, German, French, Portuguese or Romanian
Aiming Beam650nm
Net/Gross Weight5kg/13kg
Input AC96-264V, 47-53Hz
Length Of Fiber2m
Operation interface8.0 inch
CoolingAir cooling
Machine Dimensions470mm*350mm*300mm
Flightcase Dimensions540mm*400mm*360mm

Professional designing treatment handpiece

Equipped with Five treatment handpiece for different types of vascular

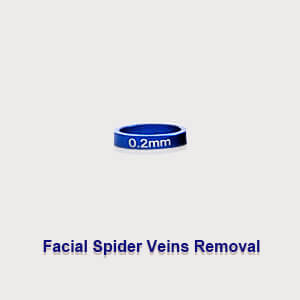

0.2mm Plug For Facial Spider Veins Removal
0.2mm Plug For Facial Spider Veins Removal

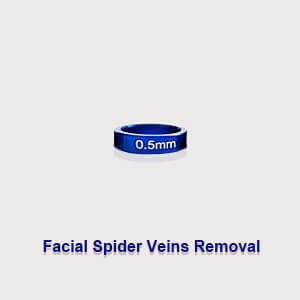

0.5mm Plug For Facial Spider Veins Removal
0.5mm Plug For Facial Spider Veins Removal

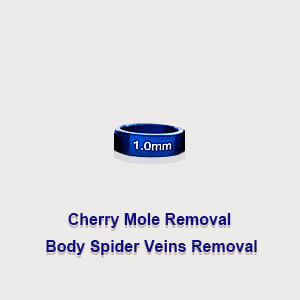

1.0mm Plug For Cherry Mole Removal And Body Spider Veins Removal
1.0mm Plug For Cherry Mole And Body Spider Veins Removal

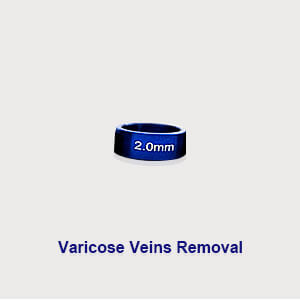

2.0mm Plug For Varicose Veins Removal
2.0mm Plug For Varicose Veins Removal

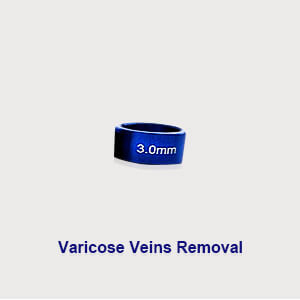

3.0mm Plug For Varicose Veins Removal
3.0mm Plug For Varicose Veins Removal

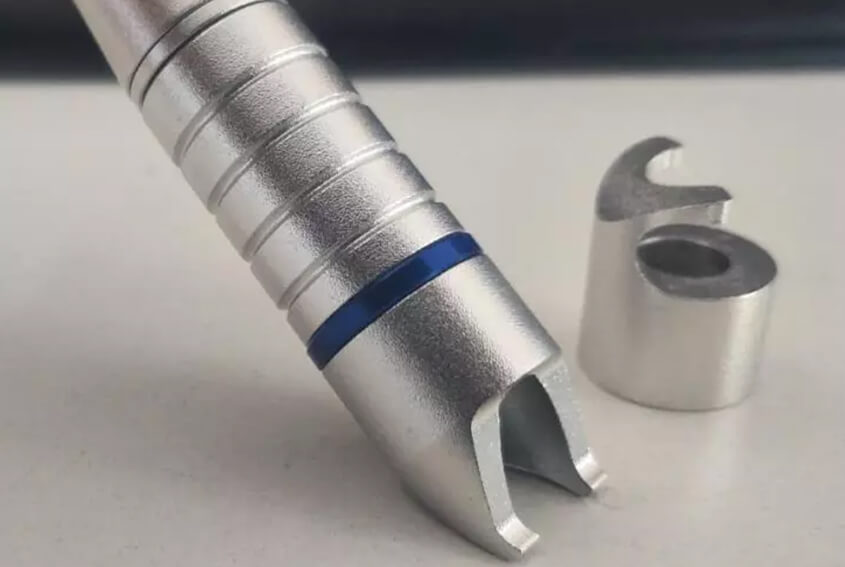

How To Use 980nm Diode Laser Spider Veins Treatment Handpiece?

  1. Taking the head to operate like holding a pen;
  2. pulses shall be overlapped with appropriate moving speed;
  3. gradually moving towards the trend of dilated blood vessels.

How To Use Treatment Handpiece?
How To Use Treatment Handpiece?

You May Also Like:

980nm Diode Laser Spider Veins Removal Machine Video:

980nm diode laser blood vessels removal machine appears to be an extremely safe technique, particularly when the energy applied is calculated, It is associated with only minor effects. Currently, 980 vascular removal machine has become the method of choice for treating superficial veins and has almost replaced the treatment of traditional ligation and stripping.

  1. 980nm laser is the optimum absorption spectrum of Porphyrin vascular cells. Vascular cells absorb the high-energy laser of 980nm wavelength, solidification occurs, and finally dissipated.
  2. To overcome the traditional laser treatment redness large area of burning the skin, professional design hand-piece, enabling the 980nm laser beam is focused onto a 0.2-0.5mm diameter range, in order to enable more focused energy to reach the target tissue, while avoiding burn the surrounding skin tissue.
  3. No consumable parts, the machine can work 24 hours a day.
  4. Treatment tip diameter will not damage the epidermis.
  5. Only one or two treatments needed.
  6. The high frequency creates high energy density, which could coagulate target tissue immediately, and these target tissues would be sloughed off within one week.
  7. One handle with 5 spot sizes, suitable for all skin types.

Accessories

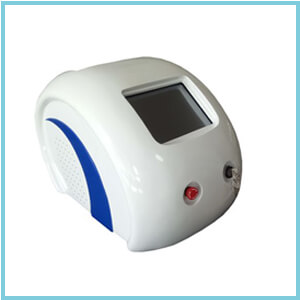

980nm Diode Laser Machine
980nm Diode Laser Machine

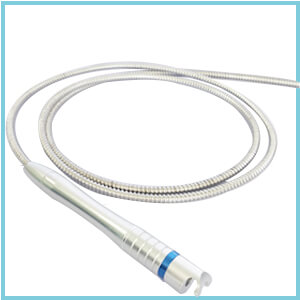

Fiber
Fiber

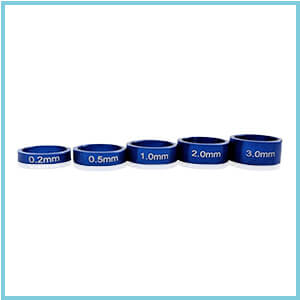

Focusing Rings
Focusing Rings

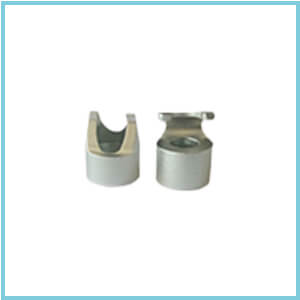

Spider Veins Removal Plugs
Spider Veins Removal Plugs

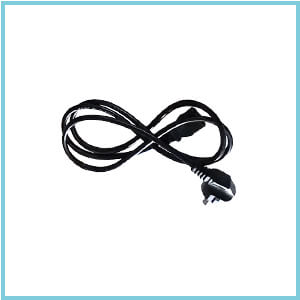

Power Line
Power Line

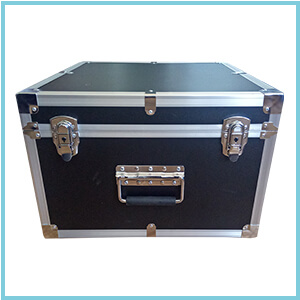

Flight Case
Flight Case

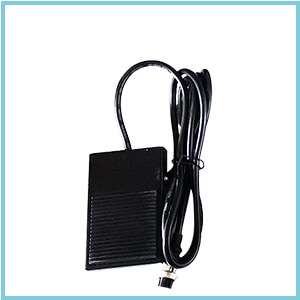

Foot Switch
Foot Switch

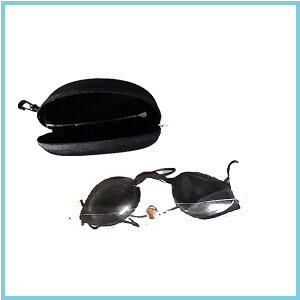

Goggles
Goggles

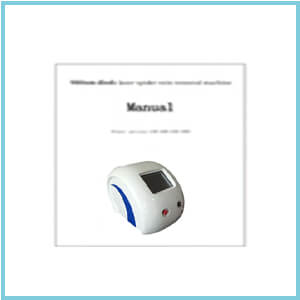

Manual
Manual

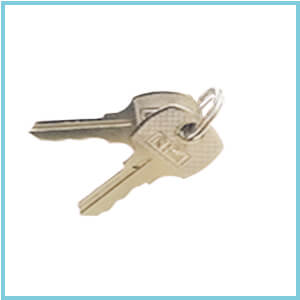

Keys
Keys

980nm Diode Laser Spider Veins Treatment Before & After Pictures

Notice: Parameter ranges are formulated based on large number of clinical practices. It is suggested that the operator shall confirm the right treatment parameters in accordance with actual clinical situation.

Professional Facial Spider Veins Removal Treatment

"<yoastmark

"<yoastmark

Features:

  1. No cosumable parts, the varicose vein removal machine can work 24 hours a day.
  2. The high frequency creats high energy density, which could coagulate target tissue immediately, and these target tissues would be sloughed off within one week.
  3. Treatment tip diameter is only 0.01 mm, which will not damage the epidermis.
  4. Only one treatment needed.
  5. Stable technology, portable design, easy for transport.
  6. Flexible and economic due to transportation.
  7. Top equipped spare.

980nm Diode Laser Machine Features
980nm Diode Laser Machine Features

Diode Laser For Vascular Removal FAQ

Do you have any warranty?

Yes, we have. Three years warranty on the host machine is given. Six months of free replacement warranty for handles, treatment heads, and parts.

How is your after-sale service?

We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google Talk, Facebook, Skype). Please contact us once the machine has any problem. The best service will be offered.

What certification do you have?

All of our machines have the CE certification which ensures quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if the machine has any problem with working overseas.

Will you teach how to use the machine?

Yes, PrettyLasers can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure s you whatever problem and whenever you meet, you can solve it easily. It is easy to operate by anyone with the instructions.

What’s your packaging?

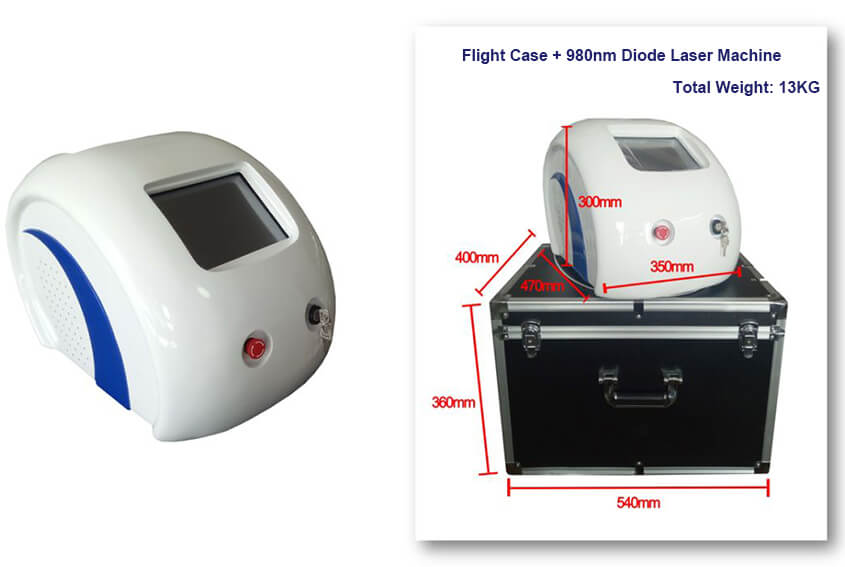

PrettyLasers use flight box to package the 980nm diode laser machine, as shown in the figure. there’s cold foam inside of the box to protect the machine during the shipment. So there’s no worry about any damages of the machine.

If you want to know more the details of 980nm diode laser spider veins removal machine, please feel free to CONTACT US

980nm Diode Laser Packaging
980nm Diode Laser Packaging

Is the most secure method to get rid of spider veins through laser treatment?

Spider veins are a scenario that can actually quite awkward and troubling for all those suffering from the problem. The disorder, also called telangiectasia, might not trigger pain and could not even be described as a medical dilemma, but many non-etheless seek treatment for the problem to relieve the unattractive overall look of the problem. Luckily, there are ways of eliminating painful spider veins that are both effective and safe.

One particular method to eliminate spider veins is by using laser methods. With these methods, a laser is done to the spider-veins to seal off them off, which makes these to break down. A handheld gadget is used to provide the laser energy, which is assimilated by coating of the vein as well as the blood inside the blood vessel. The blood coagulates and is assimilated by the body. Lasers facilitate a dose of energy to be utilized.

With the painful spider veins sealed away, blood no more moves through them and the look of telangiectasia disappears. A range of lasers could be used to eliminate veins that look like spider webs, which includes long-pulse alexandrite, long-pulse Nd, Yag lasers and diode. Light-based remedies that necessitate numerous light sources can also be effective for spider veins.

Many consider laser varicose vein pain treatment as the best option and the gold for the treating spider veins. Lasers have most certainly been utilized in the medical industry for years and have been through various developments and refinements to create it a precise, secure way to deal with numerous conditions or illnesses. The laser utilized to deal with spider veins will be concentrated and if done correctly, will never harm your skin tissue. For four to six weeks following the process, the vein will be assimilated by body.

Advantages of laser treatment compared to other treatments:

Some of the main advantages of laser removal of unnecessary blood vessels are:

  • Long lasting results, comfort and speed
  • No requirement for support stockings, tape, or bandages after treatment
  • Large portion of the body can easily be treated with less pain compared to vein stripping or sclerotherapy
  • Works effectively on any body part from where you want to remove the blood vessels.
  • There is less possibility of bruising than sclerotherapy because of the purest form of laser light energy beam. Injections are used in the sclerotherapy treatment which helps to break the blood vessel walls and skin. Then a doctor applies a nauseating liquid in the bloodstream of the undesired vessels.

Laser Spider Vein Removal provides long lasting fallouts with less discomfort and no or little recovery time after the procedure. Laser vein removal procedure is very secure and there are minimal side effects and risks involved in this process. This treatment can be performed on both women and men who are suffering from undesired vein problems.
