Laser Hair Removal Equipment

Laser Hair Removal Equipment

Laser hair removal equipment is a more effective solution for permanent hair reduction. The home laser hair removal equipment uses state-of-the-art diode lasers with strong TEC+Sapphire contact cooling technology to remove unwanted hair and with greater speed and comfrot than other methods.

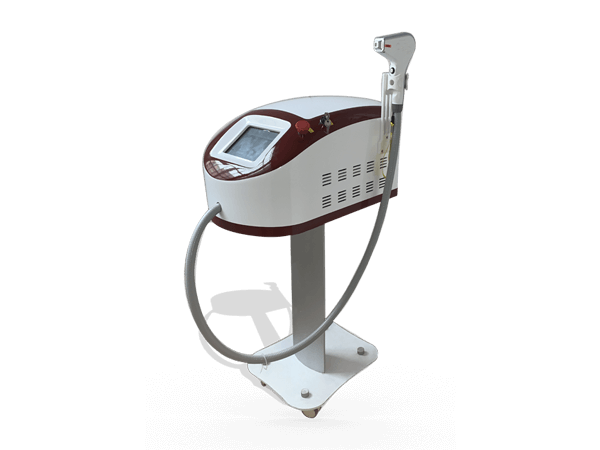

Laser Hair Removal Equipment PL-O3
Laser Hair Removal Equipment PL-O3

Buy Laser Equipment

Laser hair removal equipment PL-O3 offers you six kind of hanpieces for your option depending on your needs. Hair removal equipment PL-O3 uses strong TEC +Sapphire contact cooling technology in combination with diode laser light to allow rapid and comfortable treatemnt of large areas.

Benefits:

  • Professional design of inner handpiece structure- greatly enhace efficiency  than traditional handpiece in aesthetic laser market.
  • Alarm protection system of water flow and water temperature-stop all working immediately in case of any risk, protecting people & machine against any risk at the first time.
  • User-friendly software design-simple parameters setting and easy operation.
  • High efficient – Germany imported laser chips.
  • Joules laser hair removal

Diode Laser Hair Removal Equipment Treatment Theory

Diode Laser hair removal works by destroying the root of the hair follicle. During treatment, flashes of light are distributed over the skin and absorbed by the melanin in the hair follicle. The energy from the laser heats up and damages the hair follicle, successfully stunting the cells that stimulate regrowth. It is important to note that hair grows in a cycle, and that hair removal is only effective during the active growth stage.

Every hair goes through three stages of growth: the anagen phase, catagen phase, and telogen phase. The anagen phase, also known as the growth stage, is the duration in which your hair actively continues to grow. The catagen phase, also known as the transitional phase, is when the hair follicle shrinks and detaches from the papilla, a structure at the base of the follicle. The telogen phase, also known as the resting phase, is when the old hair is released and falls out. When the old hair sheds, the hair follicle re-attaches to the papilla and re-enters the anagen phase, repeating the cycle.

Each hair in your body can be at a different stage in the growth cycle at any given time. Thus, to target the hair during the anagen phase, multiple laser treatments are necessary to target the numerous hair follicles during their growth stage. And all the hairs are not in this phase at the same time.

Laser Hair Removal Equipment Treatment Theory
Laser Hair Removal Equipment Treatment Theory

Treatment:

Our hair removal treatment will destroy these hair follicles in matter of minutes. You will save time, and you will save yourself from a lifetime of shaving. Seriuoly, Our medical and nursing professionals have mastered the process of laser hair removal and stand behind it as one of the best ways to get rid of unwanted hair.

whether you have light, dark or tanned skin, coarse or fine hair. PrettyLasers’s hair removal solutions achieve maximum results for all areas of the body with treatments that are safe, quick and comfortable.

  • Hair removal, permanent hair reduction, depilation.
  • Photo skin rejuvenation.
  • Permanent Facial hair removal, armpit hair removal, bikini line hair removal, male back hair removal, full body hair removal, permanent chest hair removal, chin hair removal, permanent underarm hair removal…

Facial hair removal

Facial hair removal

Underarm Hair Removal

Underarm Hair Removal

Arm Hair Removal

Arm Hair Removal

Full Back Hair Removal

Full Back Hair Removal

Bikini Hair Removal

Bikini Hair Removal

Leg Hair Removal

Leg Hair Removal

Lip Hair Removal

Lip Hair Removal

Neck Hair Removal

Neck Hair Removal

Technology:

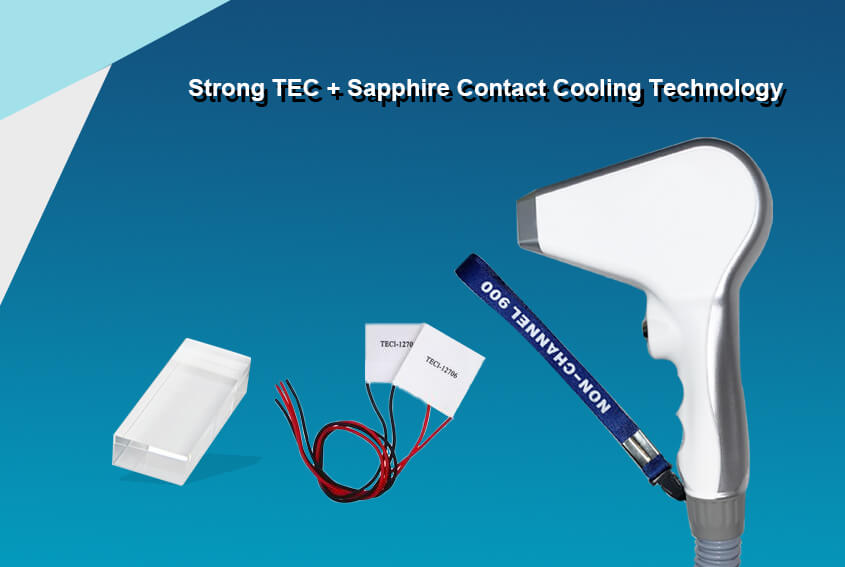

Strong TEC + Sapphire Contact Cooling Technology
Strong TEC + Sapphire Contact Cooling Technology

Strong TEC + Sapphire Contact Cooling Technology

Hair removal equipment PL-O3’s stong tec +saspphire contact cooling technology provides further comfort, virtually eliminating the cool gels. The TEC+Sapphire handpiece cools the skin during treatment, preventing superficial burns while maintaining heat within the dermis where hair follicles are treated.

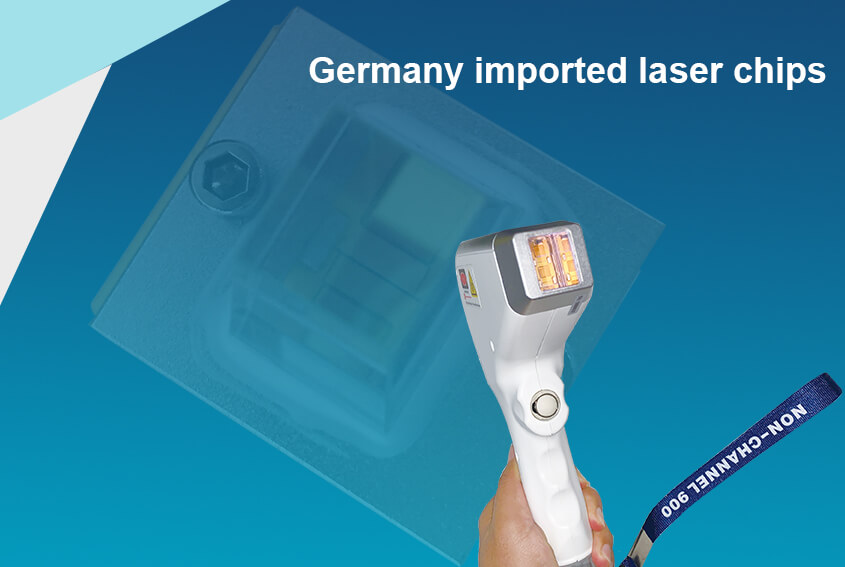

Germany imported laser chips

Germany imported laser chips-every laser chip is 150 watt, which provides high laser power, long lifetime and high reliability.

Germany imported laser chips
Germany imported laser chips

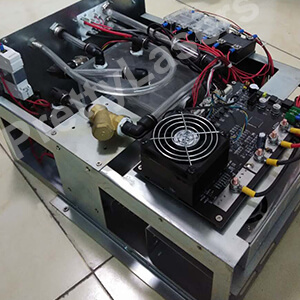

Portable Laser Hair Removal Machine Inner Structure

Advanced Connector Technology
Advanced Connector Technology

Mute Fan
Mute Fan

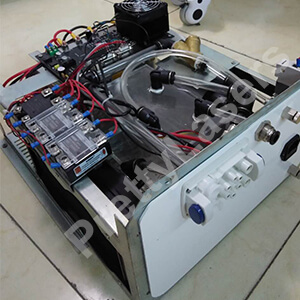

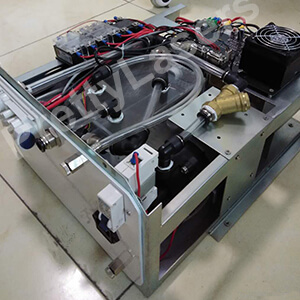

Best Professional Laser Hair Removal Machine Inside Structure - Control System - Hydroelectric Separation
Best Professional Laser Hair Removal Machine Inside Structure – Control System – Hydroelectric Separation

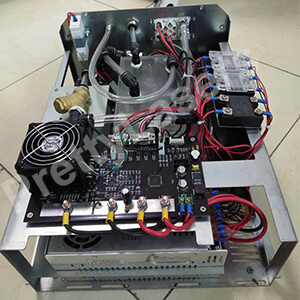

Best Professional Laser Hair Removal Machine Inside Structure - Control System
Best Professional Laser Hair Removal Machine Inside Structure – Control System

Different Handpiece Spot sizes for your option

Spot size of 10*10mm designed to treat small areas, such as permanent facial hair removal, that require precision and higher hair removal laser fluence.

TEC + Sapphire Spot size of 15*15mm provides a solution for large and small areas rquiring higher fluence levels.

25* 31mm spot size designed  to treat body hair removal and treat more sessions in less time, allowing you to quickly treat larger areas while offering your patients the fast and most effective hair removal possible.

Spot Size: 25*31mm²
Spot Size: 25*31mm²

Spot Size: 20*25mm²
Spot Size: 20*25mm²

Spot Size: 15*20
Spot Size: 15*20mm²

Spot Size 15*15mm²
Spot Size 15*15mm²

Spot Size 15*15mm²
Spot Size 15*15mm²

Spot Size 10*10mm²
Spot Size 10*10mm²

Advanced Color TouchScreen

User-friendly Interface

Esay to operate.

Recommended treatment parameters settings.

Customizable Treatment.

Screen can add your own logo

808nm Diode Laser Main Interface
808nm Diode Laser Main Interface

Diode Laser Hair Removal For Woman And Man
Diode Laser Hair Removal For Woman And Man

Reommended Treatments Settings
Reommended Treatments Settings

Technical Specifications

Laser Hair Removal Equipment
Wavelength808nm755nm, 808nm, 1064nm optional
Working Frequency1~10HzMaximum frequency 20 Hz
Energy Density1-120J/cm² adjustableOEM is ok
Handlepiece coolingTEC+SapphireSapphire OEM
TEC cooling12V6ATEC Power OEM
Spot size15cm×15cm or 25 x31mmSpot Size OEM
Output Power600w, 900wLaser power OEM
Laser BarsGermany laser Jenoptik,150W/piece
Pulse Width5ms~400ms0~1000ms OEM
Output ModePulse OutputPulse Output
LanguageStandard EnglishCan be made according to customer’s requirements
Display8’ color touch screen10.4’ is available
Protective Temperature55℃ interface selectOEM
Water PumpDP-60 diaphragm rods 12V
Flow Sensor3.5L/min flow requirement
Cooling System240×120 cooling line(2pc),18 pcs channelCompressor plan,TEC plan
Cooling Fan4pcs fans,speed 3150r/min12v fans
Case MaterialABS shell/metal shellOEM Metal Shell
Inter StructureWhite zinc hob/color zinc hobOEM
Water Tank Volumevertical3.6L/table type 2.5LOEM
Environmental Moisture<80%<80%
Environment TemperatureAir conditioning room,temperature≤28℃
voltage220V/110V

Laser Hair Removal Equipment Treatment Results Before & After

Male Back Hair Reduction
Male Back Hair Reduction

Underarm Laser Hair Removal
Underarm Laser Hair Removal

Facial Hair Removal Treatment
Facial Hair Removal Treatment

Advantages:

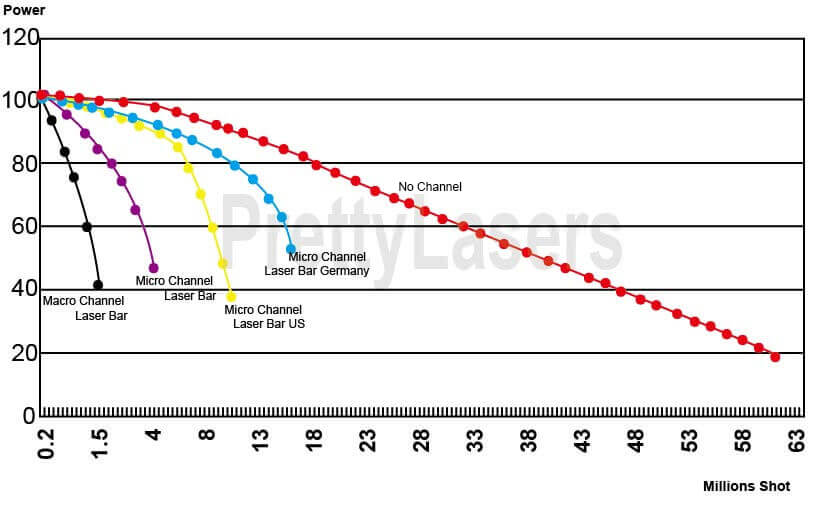

Extremely Long Lifespan
Extremely Long Lifespan

Extremely Long Lifespan

PrettyLasers is the only supplier who adopts SLD(Surface-emitting Laser Diode) technology, laser will emit from surface instead of edge, which make the Mini model with extreme long life span and pretty high energy output. As real test report, 90 millions shots is available, which is 5-10 times than laser from USA, Israel and Germany, as our partners feedback, it can be used for 5 to 10 years.

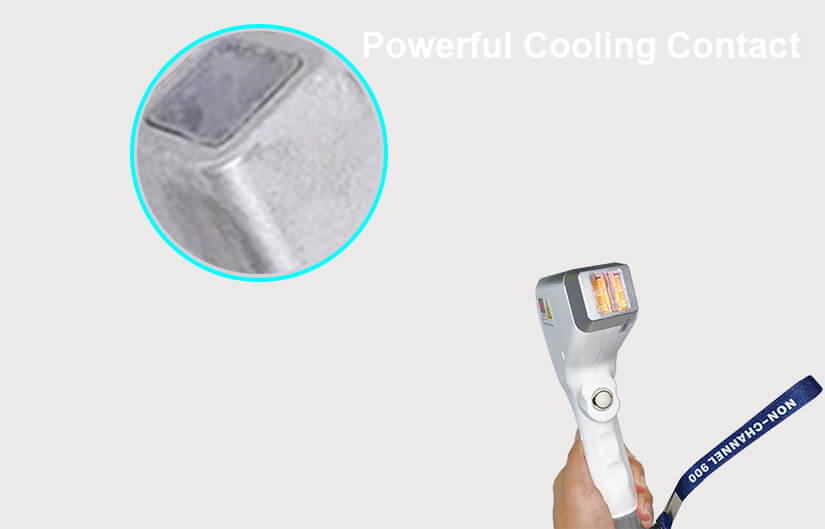

Powerful Cooling Contact

Patients always enjoys the course due to the powerful contact cooling system, long time operation even can maintain 0℃.

Powerful Cooling Contact
Powerful Cooling Contact

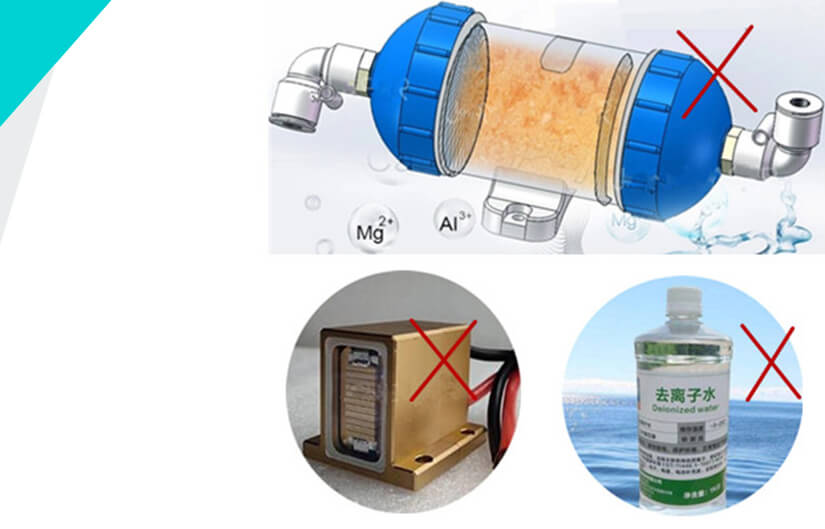

Minimum Aftersale Concerns
Minimum Aftersale Concerns

Minimum Aftersale Concerns

Different from traditional Laser bar, there’s no laser bar, no need deionized water, filter and no concern for laser burning.

You May Also Like:

Maximize the benefits of the customers

24 hours non-stop working which means you can do more patients a day.

No working environment limit

It can work under 85℃ high temperature due to the laser chip not sensative to the temperature change.

Who can get laser hair removal?

Laser Hair Removal For Male And Female

Female and male alike. Most females seek to remove hair from their underarms, bikini lines, and legs, while males are more interested in treating hair on their backs and necks.

Suitable For All Skin Types And Hair Colors

When hair removal lasers were initially introduced, the procedure was originally intended for patients with light skin and dark hairs. However, newer technologies, like portable laser hair removal machine PL-O3, safely and effectively treat patients of all skin types and hair colors.

Will hairs be completely removed with one single laser hair removal treatment?

One single treatment of laser hair removal will not remove all the hairs, because hair has three growth phases, the active phase, transitional phase, and resting phase. When laser hair removal treatment is applied, it only acts on the hair follicle cells that are on the root of hairs in the active phase, depriving their ability of growth permanently. As for the hairs in their transitional or resting phase, the laser cannot reach their follicle cells directly, so only hairs can be temporarily removed.

How many treatments of laser hair removal is needed?

When using laser hair removal treatments, due to the different growth phase of hairs, one single treatment will not remove hairs completely, and several treatments are required. In general, a complete course of laser hair removal need 3-5 treatments, with 4-6 weeks in between each treatment. The effectiveness and number of treatments required depend on individual’s hair color, unique properties and growth phase, and may vary from person to person.

Does hair removal of different areas require the same number of treatments?

No, depending on the area of hair removal and condition, different number of treatments will be applied, also laser of different energy levels will be used. This is because hairs in different areas have different thicknesses, density, and ability of regrowth.
In general, the denser the hairs, the thicker the hairs shaft, the higher energy level of the laser light is required, and the more treatments are needed.

What can you expect?

Laser hair removal requires multiple treatments. This is because the laser works best when hairs are in an early growth stage, and all the hairs are not in this phase at the same time.

OEM/ODM Solution For Diode Laser Hair Removal System:

1. Solution for laser sources, including laser diode chips, laser stacks and handle

2. Solution for electronic parts, including laser diode drivers, control board and LCD screen

3. Solution for standard OEM systems and also customize whole machine

OEM/ODM Solution For Diode Laser Hair Removal System
OEM/ODM Solution For Diode Laser Hair Removal System
