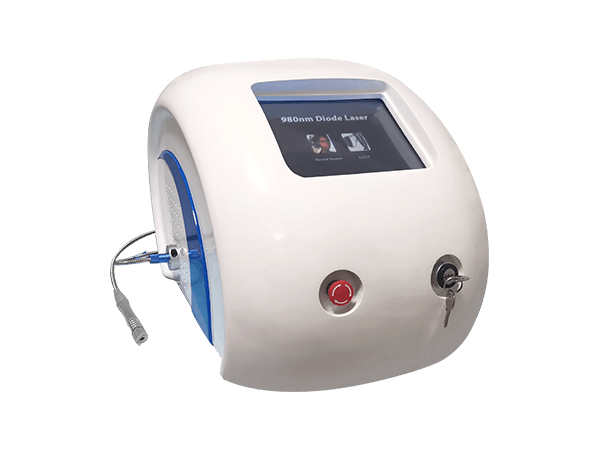

2 in 1 980nm diode laser machine for EVLT and spider veins
The 980nm 2-in-1 diode laser machine for EVLT and spider veins uses a 980nm wavelength semiconductor fiber-coupled laser for vascular removal and EVLT. The 2-in-1 980nm diode laser machine is specifically engineered to address two of the most common vascular conditions:
- Endovenous Laser Treatment (EVLT) for the effective closure of varicose veins and chronic venous insufficiency.
- Spider Vein Removal targets superficial telangiectasias and small vascular lesions on the face and body.
At the heart of this diode laser system, PL-N02 is the 980nm diode laser wavelength, which has been clinically proven to be highly absorbed by hemoglobin and water—two key chromophores involved in vascular treatments. This optimal absorption profile allows for precise targeting of the affected veins while minimizing damage to surrounding tissues, making treatments safer, more comfortable, and highly effective.
By combining EVLT and spider vein removal capabilities into a single device, medical facilities can expand their service offerings, reduce equipment investment costs, and improve treatment versatility for patients with varying vascular concerns.
The therapy has strong controllability, definite curative effect, minimal invasive, simple manipulation, no incision, small trauma, short operation time, no pain, no bleeding, no scar, increased appearance, fewer complications, fast recovery, low recurrence rate, etc. Advantages and high-efficiency safety. During the operation, the effect of varicose vein mass disappearance can be seen, and normal activities can be maintained without bed rest after the operation, which can effectively improve the physical signs of the legs.
Benefits:
- Dual Functionality – Seamlessly switches between EVLT and spider vein modes.
- Optimized Wavelength – 980nm provides excellent hemoglobin absorption for maximum vascular targeting.
- High-Power Precision – Adjustable power output up to 20W to suit various vein sizes and depths.
- Advanced Fiber Optics – Medical-grade fibers for high transmission efficiency and treatment safety.
- Portable Design – Compact structure for easy mobility within clinics or between locations.
- Intuitive Software -User-friendly operation.
Endovenous Laser Treatment EVLT Working Principle
According to the characteristics of the thermal energy of the laser and the laser effect on the tissue, the laser emitted by this instrument through a fiber-coupled light source is conducted through a special circular fiber to accurately destroy the inner wall of the blood vessel, achieve blood vessel closure and fibrosis, and achieve the purpose of treating varicose veins of the lower extremities. The laser in this band has a high absorption rate of melanin and deoxyhemoglobin. It has the effect of coagulation and hemostasis while vaporizing and cutting.
The 980nm Diode Laser Technology
The 980nm wavelength demonstrates excellent affinity for hemoglobin—the oxygen-carrying protein in blood—as well as water within biological tissues. This dual absorption characteristic makes it ideal for vascular procedures where precision, minimal collateral damage, and patient comfort are priorities.
During EVLT, the 980nm laser energy is delivered directly into the affected vein via a fiber optic probe, causing controlled thermal damage to the vein wall. This process leads to vein contraction, fibrosis, and eventual closure of the incompetent vein, rerouting blood flow to healthier vessels.
For superficial vascular lesions such as spider veins, the 980nm laser energy is applied transcutaneously, selectively coagulating the targeted blood vessels without the need for invasive incisions or downtime.
In both applications, the 2-in-1 980nm diode laser system PL-N02 delivers controlled, adjustable power settings, ensuring tailored treatments for each patient based on the severity, location, and size of the vascular concern.

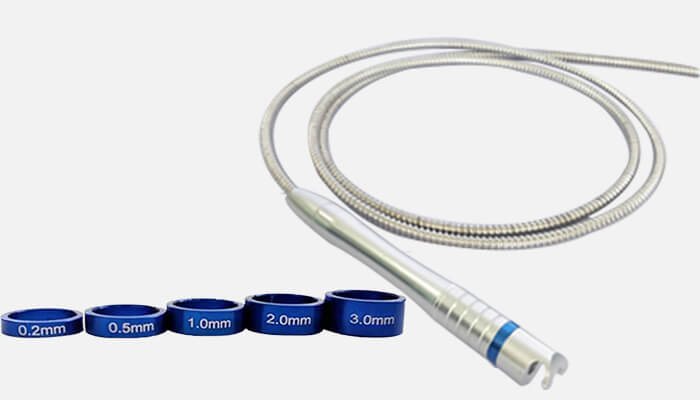

Vascular Removal Handle
Vascular laser system machine PL-N02 offers pulse mode and five different spot sizes for perfect adjustment to patient skin type, treatment area, and indication. The spot size can be set directly on the handpiece without the need to change fibers.

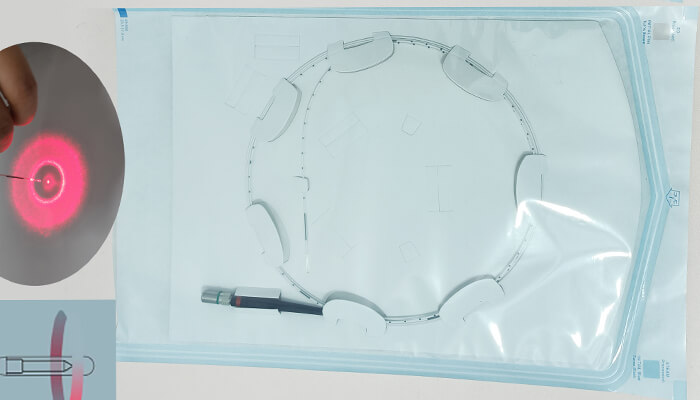

EVLT Fiber
The EVLT fiber specially designed for use with the EVLT machine, is a high-precision, minimally invasive medical accessory used for Endovenous Laser Treatment (EVLT). This fiber allows for the effective closure of varicose veins by delivering targeted laser energy directly inside the affected vein, ensuring safe, efficient, and lasting results.
The EVLT machine’s fiber is engineered for optimal energy transmission, ergonomic control, and seamless compatibility with various medical-grade fiber types, making it an essential tool for vascular specialists and clinics performing varicose vein ablation procedures.
- Optimized laser emission
- 360-degree launch angle
- Indirect
- The use of laser energy is more effective.
Technical Parameters
| Professional 2 in 1 980nm diode laser machine for EVLT and spider veins | |
|---|---|
| Voltage | 220V/50Hz or 110V/50Hz or 110V/60Hz |
| Wavelength | 980 nm |
| Output power | 0.5-20W & 0.5-13W |
| Mode | Pulse Mode, Continuous mode |
| Output | Fiber-optic coupling |
| Aiming Beam | 650nm |
| Length of Fiber | 2m & 3m |
| Pulse Width | 15ms—80ms |
| Frequency | 1-10Hz |
| Interface | 8.0 inch |
| Language | English or OEM |
| Cooling System | Wind cooling |
| Package size | 540mm*400mm*360m |
Advantages of the 2-in-1 980nm Diode Laser Machine PL-N02
The 2-in-1 980nm Diode Laser Machine PL-N02 offers a range of cutting-edge features that distinguish it from conventional technologies:
Dual Application Platform
- EVLT Mode: Minimally invasive treatment for larger veins, including the great saphenous vein and small saphenous vein, effectively addressing varicose veins and venous insufficiency.
- Spider Vein Mode: Non-invasive laser therapy for small, superficial veins and facial vascular lesions, improving aesthetics without downtime.
Optimal 980nm Wavelength
- Superior absorption by hemoglobin and water for targeted vascular coagulation.
- Minimizes the risk of skin burns and collateral tissue damage.
- Suitable for various skin types, expanding treatment eligibility.
Adjustable Power Output
- Fine-tuned energy settings allow practitioners to customize treatments based on patient-specific needs, ensuring comfort and optimal results.
Portable and Compact Design
- Space-saving design is ideal for clinics, medical spas, and hospitals.
- Lightweight and portable, enabling treatment flexibility across different rooms or facilities.
User-Friendly Interface
- Intuitive touchscreen controls for simplified operation.
- Treatment protocols and manual adjustment options for experienced users.
High-Precision Fiber Optic Delivery
- Medical-grade fiber optic delivery system ensures precise laser targeting during EVLT procedures.
Benefits of Using the 2-in-1 980nm Diode Laser Machine for Vascular Treatments
For both patients and practitioners, the adoption of advanced diode laser systems offers numerous advantages over traditional vascular treatment approaches.
For Patients:
- Minimally Invasive and Non-Surgical: No large incisions or stitches required; reduced discomfort during and after procedures.
- Quick Recovery Time: Many patients resume normal activities within 24 to 48 hours.
- High Success Rates: Clinical studies report vein closure success rates exceeding 95% for EVLT with 980nm laser technology.
- Cosmetic Improvements: Effective reduction of unsightly spider veins on the face, legs, and other areas improves overall appearance and self-confidence.
- Enhanced safety profile reduces the risk of complications.
For Medical Professionals:
- Enhanced Treatment Versatility: One device for both EVLT and spider vein removal maximizes ROI and broadens clinical services.
- Minimally Invasive Technique: Reduces procedural risks, enhances patient safety, and improves clinic reputation.
- Short Learning Curve: User-friendly interface simplifies operator training.
- Reduced Equipment Footprint: Space-efficient solution eliminates the need for multiple machines.
What types of veins can this machine treat?
The 2-in-1 980nm diode laser device PL-N02 can effectively treat large varicose veins (via EVLT) and superficial spider veins on the legs, face, and body.
Is the treatment painful?
EVLT is typically performed under local anesthesia, ensuring minimal discomfort. Spider vein treatments may cause slight tingling or warmth, but are generally well-tolerated without anesthesia.
Can the device be used on all skin types?
Yes, the 980nm wavelength is safe for all Fitzpatrick skin types when used with proper protocols.
How many sessions are required?
- EVLT: Usually, one treatment per vein.
- Spider Veins: May require 1-3 sessions depending on vein size and patient response.
How long is the recovery period?
Most EVLT patients can resume light activities within 24-48 hours. Spider vein removal typically has no downtime.
Why 980nm is the Preferred Choice for EVLT and Spider Vein Treatments？
- The 980nm laser system offers a more balanced absorption ratio between hemoglobin and water, delivering:
- Higher Treatment Precision: Effective coagulation of targeted vessels with minimal impact on surrounding tissues.
- Improved Safety Profile: Reduced risk of skin burns, nerve injury, or other adverse events.
- Enhanced Patient Comfort: Lower energy requirements translate to less pain and reduced need for local anesthesia.
- Versatility Across Applications: One vascular laser system can seamlessly transition between deep vein ablation (EVLT) and surface-level spider vein treatments.
